5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line

5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line

5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line

Brand Name: Upper Rippled Edge Trim Punch
Model Number: Lower Rippled Edge Trim blade 001
MOQ: 2 PCS
Price: Negotiate Price
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
TS16949
Product Name:
Upper Edge Trim Punch
Material:
HAP40 Or ASP30
Specification:
1/4",3/8",1/2",5/8",3/4",7/8",1" Etc
Processing:
Precision CNC Lathe Turning
Heat Treatment ::
HRC 64°-66°
Accuracy:
0.001
Quality:
100% Inspection
Surface Finish:
Ra 0.4
Surface Treatment:
Burnishing
Service:
OEM Or ODM
Application:
High Speed Fin Press Line For Punching Aluminum Foil, Copper Foil, Stainless Steel, Etc
High Light:
High Speed Fin Press Line For Punching Aluminum Foil, Copper Foil, Stainless Steel, Etc
Packaging Details:
Plastic box and carton box packaging
Highlight:

HSS ASP30 Trim Punch

,

Upper Edge Trim Punch

,

Rippled Edge Trim Punch

Product Description
5mm HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line
High-performance precision tooling for fin press line applications in HVAC and refrigeration systems.
Product Specifications
Attribute Value
Product Name Upper Rippled Edge Trim Punch Lower Rippled Edge Trim Blade
Material HAP40 or ASP30
Specification 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1" etc
Processing Precision CNC Lathe Turning
Heat Treatment HRC 64°-66°
Accuracy 0.001
Quality 100% Inspection
Surface Finish Ra 0.4
Surface Treatment Burnishing
Service OEM or ODM
Application High speed fin press line for punching aluminum foil, copper foil, stainless steel, etc
Product Description
High Speed Fin die rippled edge trim punch, made of powder high-speed steel HAP40 or ASP30 grinding, offers exceptional durability and manufacturing precision. Designed for punching aluminum foil, copper foil, and stainless steel, this component serves as a critical spare part for fin production in air conditioning, refrigeration, heat exchangers, surface coolers, evaporators, and condensers.
Customization Services
  • Fin die punches and pierce components
  • Slitting blades and edge trim tools
  • Rippled slitting blades (upper and lower)
  • Cross slitting blades and cut-off blade assemblies
  • Fin die punching bushings and flanging components
  • Louver punch sets and all fin die accessories
Available Specifications
5mm, 1/4", 7mm, 5/16", 8.9mm, 3/8", 12.7mm, 1/2", 14.5mm, 5/8", and customized sizes
Product Images

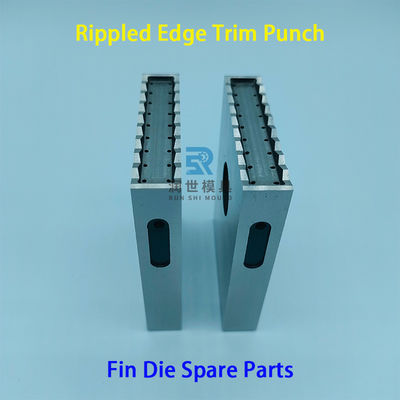

5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 0

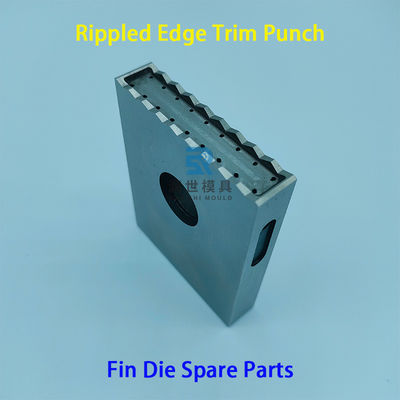

5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 1

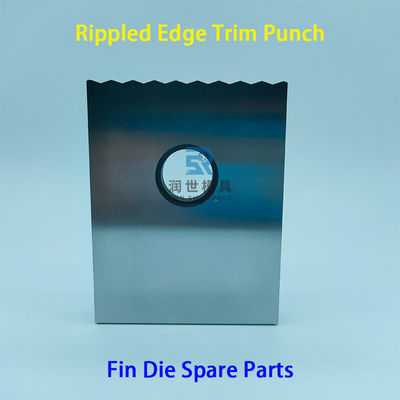

5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 2
5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 3
5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 4
5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 5
Application Industry
5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 6
Manufacturing Expertise
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing for air conditioning, heat exchanger production, and various high-tech industries including new energy, medical devices, semiconductors, aerospace, and automotive applications.
5ｍｍ HSS ASP30 Upper Rippled Edge Trim Punch For JDM Fin Press Line 7
Frequently Asked Questions
Q: What is the name of this product?
A: Fin die upper rippled edge trim punch, Fin Die lower rippled edge trim blade, Fin die spare parts
Q: Are you a trading company or manufacturer?
A: We are manufacturer.
Q: What industry is this product mainly used for?
A: Critical for fin production in air conditioning, refrigeration, heat exchangers, surface coolers, evaporators, and condensers.
Q: How is manufacturing handled after order confirmation?
A: Our experienced production engineers (10+ years) work from samples or drawings, ensuring precise tolerance control.
Q: What is your delivery time?
A: 5-10 days for in-stock items; 15-25 days for custom production (quantity dependent).
Q: What are your payment terms?
A: ≤$10,000: 100% advance; >$10,000: 50% advance, balance before shipment.
