Hard chrome plating Universal Mandrel for Φ7.94 Copper Tube Hairpin Bender

Brand Name:	Universal Mandrel
Model Number:	Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 GCr15 Or YG8

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Highlight:

plating pipe bender parts

plating bender spare parts

3d pipe bender parts

Product Description

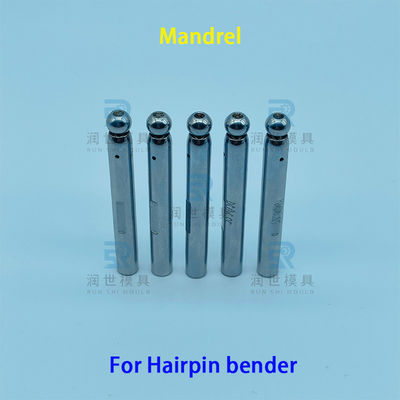

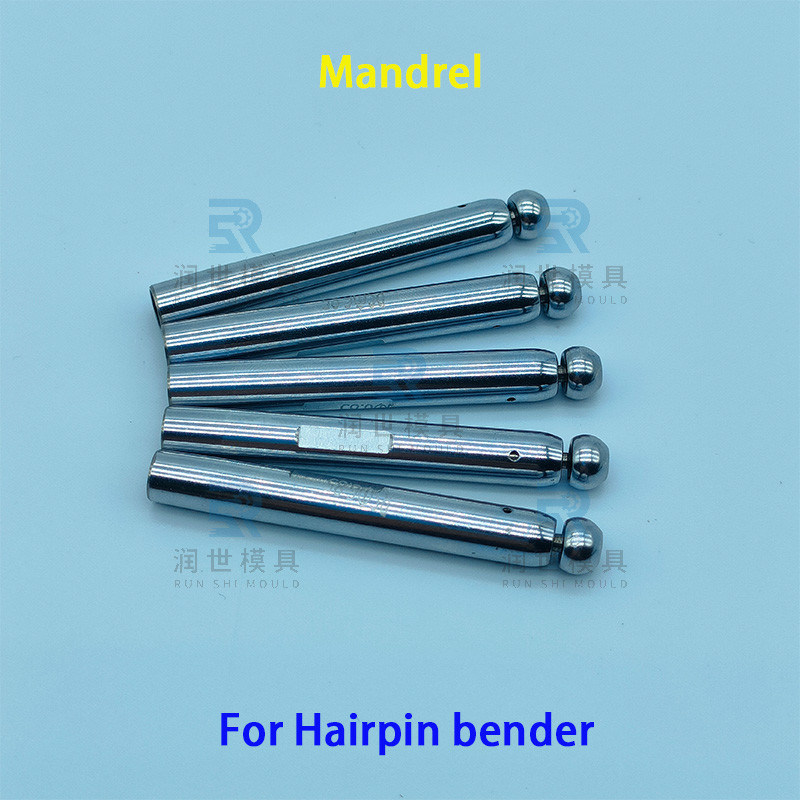

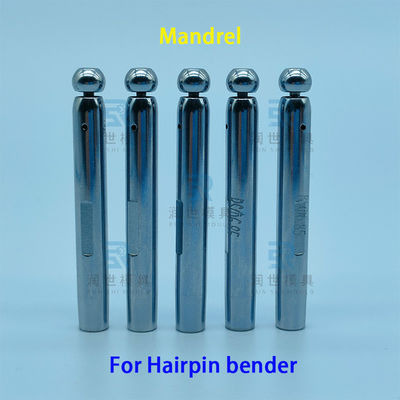

Hard Chrome Plating Universal Mandrel for Φ7.94 Copper Tube Hairpin Bender

Crafted from premium imported SUJ2 bearing steel and coated with a hard chrome layer, this universal mandrel is designed for durability and wear resistance. Its ball head can pivot freely, making it ideal for installation on long U-tube bending machines (Hairpin benders) for the efficient U-bending of copper and aluminum tubes.

Product Specifications

Attribute	Value
Product Name	Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material	SUJ2 GCr15 or YG8
Specification	Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ14.1, Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Cutting Tube ID	Φ4.76, Φ5, Φ6.35, Φ7, Φ7.94, Φ9.52, Φ12.7, Φ15.88, Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Key Features

Ensures bent tubes have smooth, wrinkle-free, and scratch-free surfaces
Widely used in air-conditioning heat exchangers, evaporators, and condensers
Accommodates various tube diameters with custom specifications available
Precision CNC machining for consistent performance
Hard chrome plating for enhanced durability and wear resistance

Available Specifications

Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ9.6, Φ10.6, Φ12.9, Φ14.1, Φ15.5, Φ16.5, Φ18.3

Product Images

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. focuses on the precision machinery manufacturing industry. Since its establishment, the company has mainly provided equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing enterprises. It also provides ceramic parts and tungsten steel parts for industries such as new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive.

Frequently Asked Questions

What is the name of this product?

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Are you a trading company or manufacturer?

We are manufacturer.

What industry is the Universal Mandrel mainly used for?

It is an important bending tube part for CNC 3D tube bending machine and copper tube hairpin bender or return bender.

How to manufacture after the order is confirmed?

We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

How long is your delivery time?

Generally it is 5-10 working days if the goods are in stock. Or it is 10-25 working days if the goods are not in stock, depending on quantity.

What are your terms of payment?

Payment ≤ $10,000 USD: 100% in advance. Payment > $10,000 USD: 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
