Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending

Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending

Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending

Brand Name: Dull Mandrel
Model Number: Dull Mandrel 001
MOQ: 10 PCS
Price: Negotiate Price
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
TS16949
Product Name:
Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel
Material:
SUJ2 GCr15 Or YG8
Specification:
Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3
Processing:
Precision CNC Lathe Turning
Heat Treatment ::
HRC 60°-62°
Cutting Tube ID:
Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality:
100% Inspection
Surface Finish:
Ra 0.8
Surface Treatment:
Hard Chrome Plating
Service:
OEM Or ODM
Application:
CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender
Usage:
Bending Copper,Aluminum And Steel Tube
Packaging Details:
Plastic box and carton box packaging
Highlight:

Return Bender Spare Parts Dull Mandrel

,

Return Bender 5mm Dull Mandrel

Product Description
Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending
High-quality dull mandrel for precision bending of copper and aluminum tubes in industrial applications.
Product Specifications
Attribute Value
Product Name Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material SUJ2 GCr15 or YG8
Specification Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3
Processing Precision CNC Lathe Turning
Heat Treatment HRC 60°-62°
Cutting Tube ID Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality 100% Inspection
Surface Finish Ra 0.8
Surface Treatment Hard chrome plating
Service OEM or ODM
Application CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage Bending Copper, Aluminum and Steel Tube
Product Description
Dull Mandrel Description: This dull mandrel is made of high-quality bearing steel with chrome-plated surface. Available in elliptical, semicircular and thumb-shaped rod ends. Installed on U-shaped tube benders (return bender or hairpin bender) to bend copper and aluminum tubes for air conditioning systems.
Widely used in manufacturing workshops for household, automotive and rail transit air conditioners. Produces smooth, wrinkle-free bends in tubes including Φ4.76, Φ5, Φ6.35, Φ7 and custom specifications.
Dull Mandrel Specifications
  • Φ4.14
  • Φ6.0
  • Φ6.22
  • Φ6.85
  • Φ8.55
  • Φ8.8
  • Φ9.6
  • Φ10.6
  • Φ12.9
  • Φ14.1
  • Φ15.5
  • Φ16.5
  • Φ18.3
Product Gallery

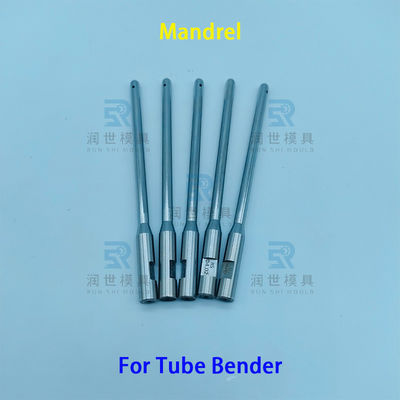

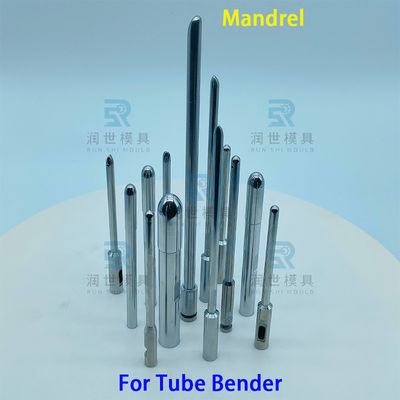

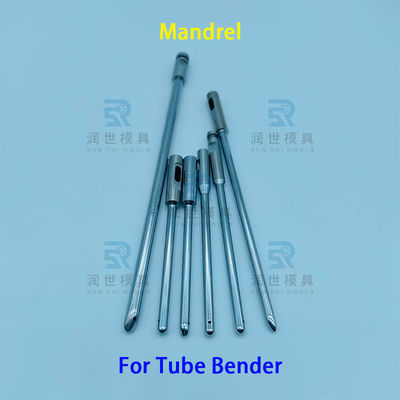

Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 0 Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 1 Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 2 Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 3 Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 4 Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 5 Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 6 Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 7
Application Industry
Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 8
Manufacturing Workshop
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing for air conditioning, heat exchanger, and various industrial applications including new energy, medical devices, aerospace, and automotive industries.
Φ5mm Dull Mandrel Return Bender Spare Parts Copper Aluminum Tube Bending 9
Frequently Asked Questions
Q: What is the name of this product?
A: Universal Mandrel One-way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the Dull Mandrel mainly used for?
A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender
Q: How to manufacture after the order is confirmed?
A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.
Q: How long is your delivery time?
A: Generally it is 5-10 working days if the goods are in stock. or it is 10-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.
If you have another question, please feel free to contact us
