CNC 3D Pipe Bender Parts Mandrel Φ15.88mm Steel Tube Bending Mandrel

Brand Name:	Universal Mandrel
Model Number:	Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Universal Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 GCr15 Or YG8

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Highlight:

CNC Pipe Bender Parts

3D Pipe Bender Parts

Steel Tube Bending Mandrel

Product Description

CNC 3D Pipe Bender Parts Mandrel Φ15.88mm Steel Tube Bending Mandrel

Precision bending mandrel for CNC 3D tube bending machines, designed for copper, aluminum, and steel tubes with superior wear resistance and long service life.

Product Specifications

Product Name	Universal Mandrel, One-Way Mandrel, Dull Mandrel, Alloy Mandrel, Aluminum tube mandrel
Material	SUJ2 GCr15 or YG8
Specification	Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ14.1, Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

Product Description

Electroplated bending mandrel made of high-quality GCr15 bearing steel with hard chrome plating for enhanced strength and wear resistance. Designed for CNC tube bending machines and manual tube benders, this mandrel ensures perfect, smooth bends with no wrinkles or distortions in copper, aluminum, and steel tubes.

Key features include:

Precision CNC machining for consistent performance
Hard chrome plating for extended service life
Works with pipe diameters from Φ8 to Φ21
Custom specifications available
Ideal for gas water heaters, wall-mounted boilers, and refrigeration applications

Available Specifications

Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ9.6, Φ10.6, Φ12.9, Φ14.1, Φ15.5, Φ16.5, Φ18.3

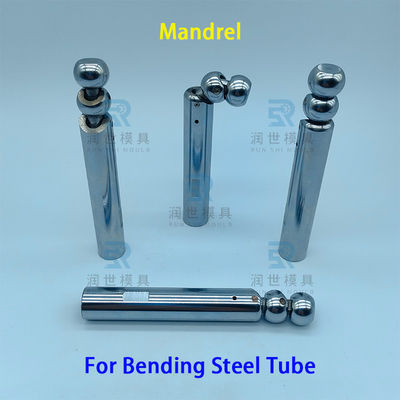

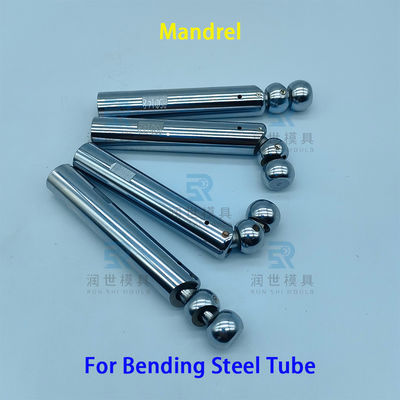

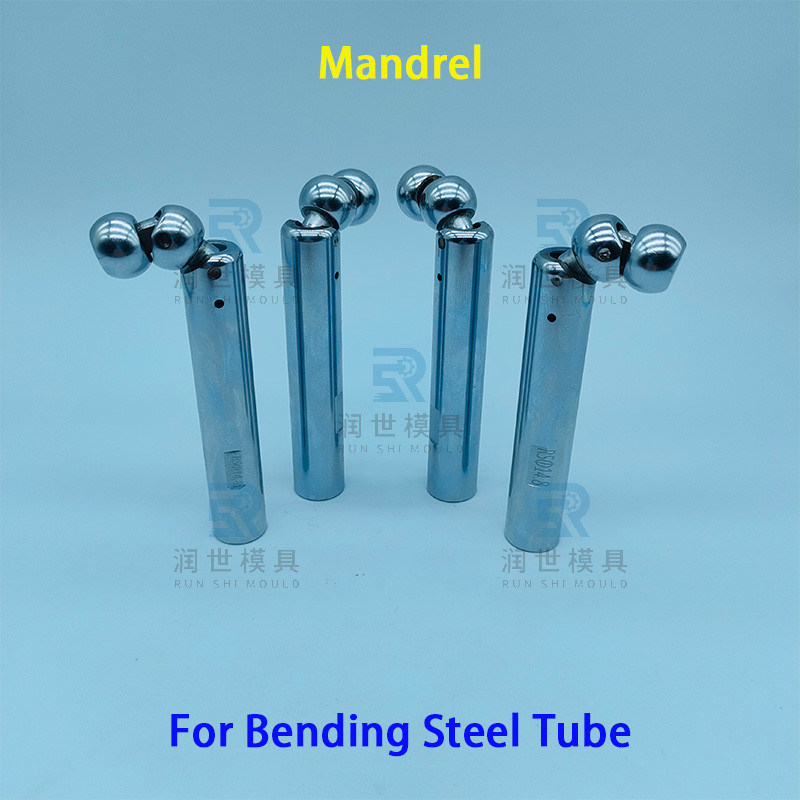

Product Images

Application Industry

Manufacturer Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning and heat exchanger manufacturing. The company also supplies ceramic and tungsten steel parts for industries including:

New energy
Fluid control
Medical devices
Semiconductor
Aerospace
Photovoltaics
Lithium batteries
Petrochemicals
High-precision automation equipment
Electronic communication
Automotive

Frequently Asked Questions

Q: What is the name of this product?

A: Bending Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the Bending Mandrel mainly used for?

A: It is an important bending tube part for CNC 3D tube bending machine and copper tube hairpin bender or return bender.

Q: How to manufacture after the order is confirmed?

A: We need samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.

Q: How long is your delivery time?

A: 5-10 working days if in stock, or 10-25 working days if not in stock, depending on quantity.

Q: What are your payment terms?

A: Payment ≤ $10,000 USD: 100% in advance. Payment > $10,000 USD: 50% T/T in advance, balance before shipment.

For additional questions, please feel free to contact us.
