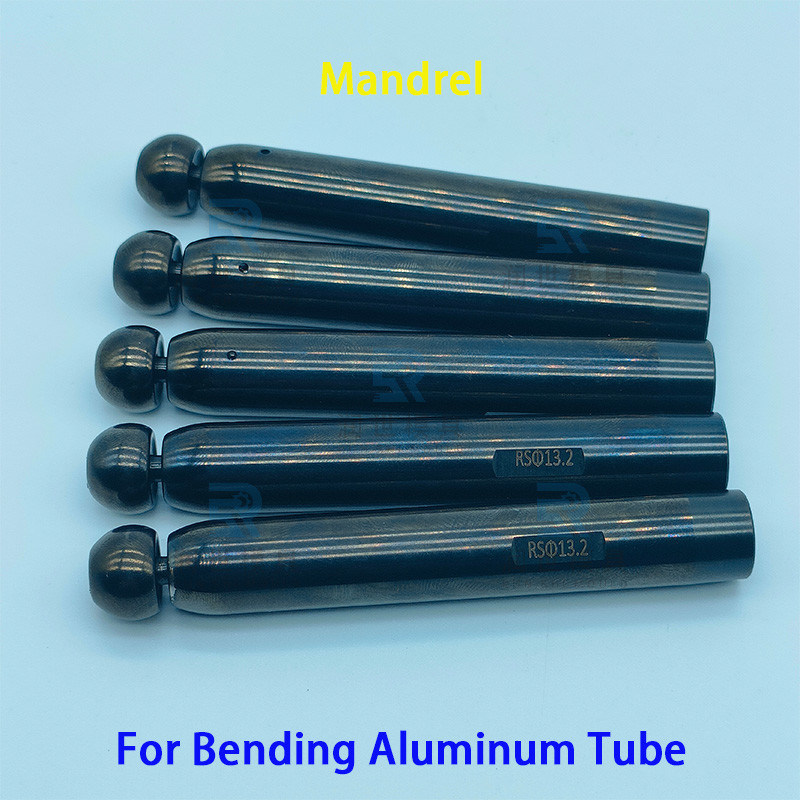

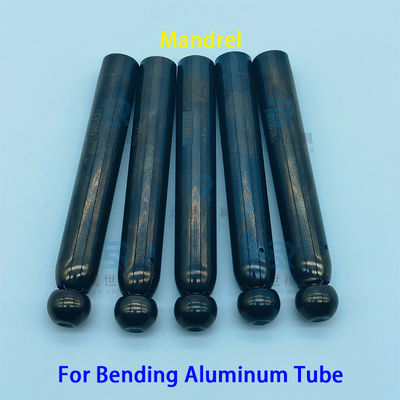

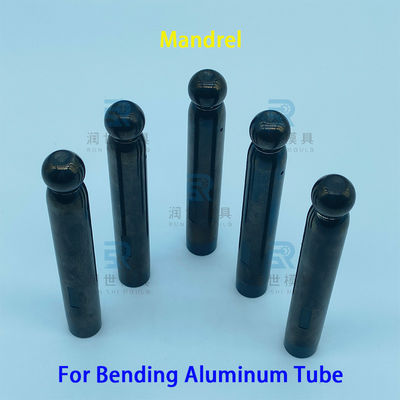

Smooth And Bright DLC Tube Bender Mandrel For Aluminum Tube Bending

Brand Name:	DLC Mandrel
Model Number:	DLC Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

DLC Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum Tube Mandrel

Material:

SUJ2 GCr15 Or YG8

Specification:

Φ4.14、Φ6.0、Φ6.22、Φ6.85、Φ8.55、Φ8.8、Φ14.1、Φ18.3

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 65°-68°

Cutting Tube ID:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.8

Surface Treatment:

DLC Coating

Service:

OEM Or ODM

Application:

CNC 3D Tube Bending Machine,Copper Tube Hairpin Bender,Ruturn Bender

Usage:

Bending Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Highlight:

Smooth Tube Bender Mandrel

DLC Tube Bender Mandrel

Aluminum Tube Bender Mandrel

Product Description

Smooth And Bright DLC Tube Bender Mandrel For Aluminum Tube Bending

Precision-engineered DLC Mandrel designed for aluminum tube bending in CNC tube benders, featuring superior surface finish and durability.

Product Specifications

Attribute	Value
Product Name	DLC Mandrel One-Way Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel
Material	SUJ2 GCr15 or YG8
Specification	Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ14.1, Φ18.3
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 65°-68°
Cutting Tube ID	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.8
Surface Treatment	DLC coating
Service	OEM or ODM
Application	CNC 3D Tube Bending Machine, Copper Tube Hairpin Bender, Return bender
Usage	Bending Copper, Aluminum and Steel Tube

This premium aluminum tube mandrel features a titanium coating on bearing steel construction. The coating prevents aluminum powder buildup, ensuring clean, high-quality bends. Ideal for hairpin benders, return benders, and CNC tube benders, it produces smooth, wrinkle-free bends for heat pumps, heat exchangers, and refrigeration applications.

Available Specifications

Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ9.6, Φ10.6, Φ12.9, Φ14.1, Φ15.5, Φ16.5, Φ18.3

Product Images

Application Industry

Manufacturing Workshop

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for air conditioning, heat exchanger manufacturing, and various industries including new energy, medical devices, aerospace, and automotive.

Frequently Asked Questions

Q: What is the name of this product?

A: Universal Mandrel DLC Mandrel Dull Mandrel Alloy Mandrel Aluminum tube mandrel

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the DLC Mandrel mainly used for?

A: It is an important bending tube parts for CNC 3D tube bending machine and copper tube hairpin bender or return bender.

Q: How to manufacture after the order is confirmed?

A: We need to provide samples or drawings, one of which is sufficient. Our production engineers are professionals with over 10 years of experience, and they know how to control tolerances and precision.

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. Or it is 10-25 working days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=10000USD, 100% in advance. Payment>10000USD, 50% T/T in advance, balance before shipment.

If you have another question, please feel free to contact us.
