Customized Ring Mandrel Ring Inserted Machine Parts

Brand Name:	Ring Inserted Mandrel
Model Number:	Ring Inserted Mandrel 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Ring Mandrel

Material:

SUJ2 GCr15

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Specification:

Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Hard Chrome Plating

Service:

OEM Or ODM

Application:

Ring Inserted Machine Fully Automatic Bending Machine Tube Bending Ring Integrated Machine

Usage:

The Solder Ring Is Inserted Into The Copper Tube Elbow Or Aluminum Tube Elbow To Facilitate The Subsequent Welding Of The Elbow On The Heat Exchanger

Packaging Details:

Plastic box and carton box packaging

Highlight:

Customized Ring Mandrel

Ring Inserted Machine Parts

Ring Inserted Machine Mandrel

Product Description

Customized Ring Mandrel Ring Inserted Machine Parts

Customized Ring Inserted Machine Parts Mandrels for Air Conditioning Systems

Product Specifications

Attribute	Value
Product Name	Ring Inserted Mandrel, Ring Inserted Rod, Ring Elbow Clamp, Elbow Conveyor Track, Vibration Disc
Material	SUJ2 GCr15
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Specification	Φ4.76 Φ5 Φ6.35 Φ7 Φ7.94 Φ9.52 Φ12.7 Φ15.88 Φ19.05
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Hard chrome plating
Service	OEM or ODM
Application	Ring Inserted Machine, Fully Automatic Bending Machine, Tube bending ring integrated machine

Product Description

Our Ring Inserted Mandrels are precision-engineered components designed for air conditioning system manufacturing. These specialized mandrels facilitate the insertion of solder rings into copper or aluminum tube elbows, optimizing the welding process in heat exchanger production.

Key Specifications: Φ4.14, Φ6.0, Φ6.22, Φ6.85, Φ8.55, Φ8.8, Φ9.6, Φ10.6, Φ12.9, Φ14.1, Φ15.5, Φ16.5, Φ18.3

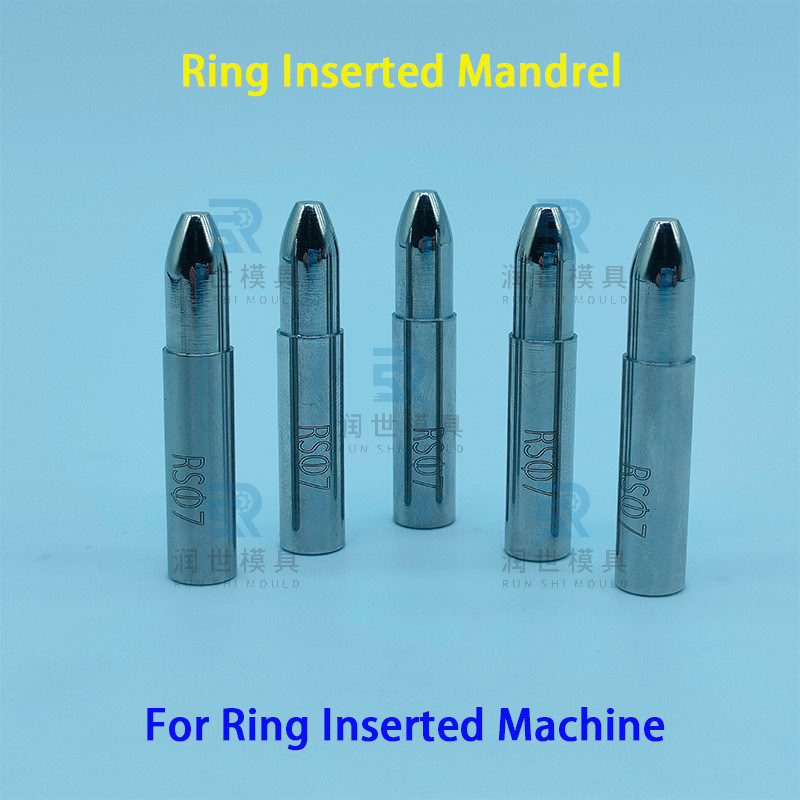

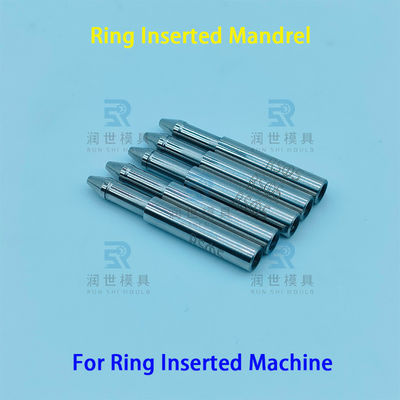

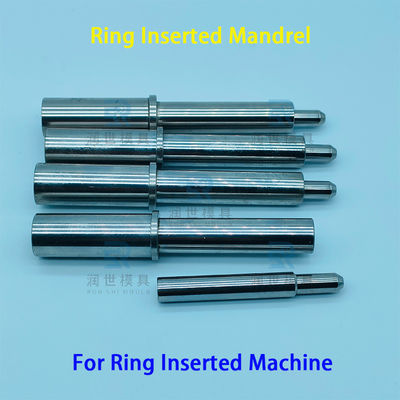

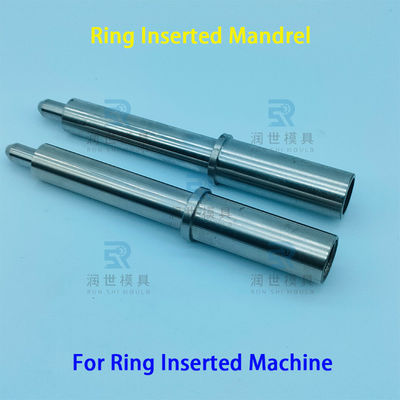

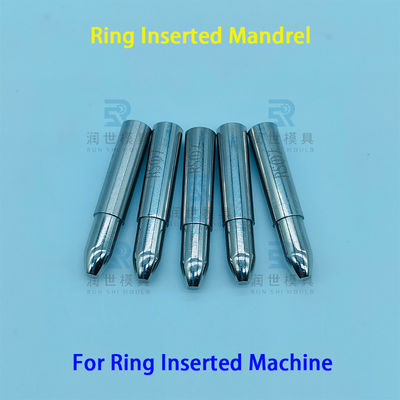

Product Gallery

Application Industry

Manufacturing Expertise

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing for air conditioning and heat exchanger production. Our expertise extends to:

Equipment molds and vulnerable parts
Cutting tools and precision components
Ceramic and tungsten steel parts for diverse industries including new energy, medical devices, aerospace, and automotive

Frequently Asked Questions

Q: What is the name of this product?

A: Ring Inserted Mandrel, Ring Inserted Rod, Ring Elbow Clamp, Elbow Conveyor Track, Vibration Disc.

Q: Are you a trading company or manufacturer?

A: We are manufacturer.

Q: What industry is the ring inserted mandrel mainly used for?

A: It is an important spare part for ring inserted machines, facilitating solder ring insertion into copper or aluminum tube elbows for heat exchanger welding.

Q: How do you manufacture after order confirmation?

A: We require samples or drawings. Our production engineers with 10+ years experience precisely control tolerances and specifications.

Q: What is your delivery time?

A: 5-10 working days for in-stock items; 10-25 working days for custom production, depending on quantity.

Q: What are your payment terms?

A: ≤$10,000: 100% advance. >$10,000: 50% advance, balance before shipment.
