| Brand Name: | 3-Jaw Chuck |
| Model Number: | 3-Jaw Chuck 01 |
| MOQ: | 10 PCS |
| Price: | Negotiate Price |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |

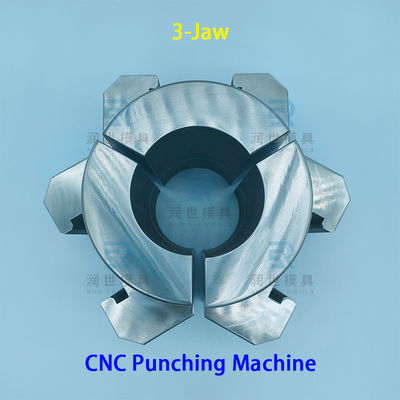

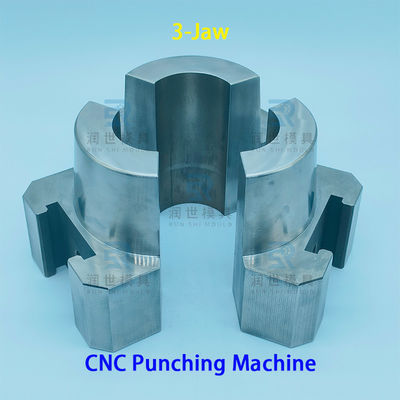

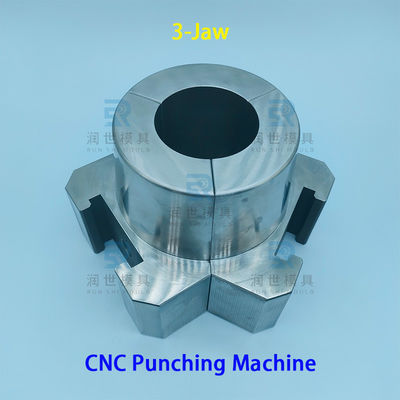

Precision 3-jaw chuck designed for CNC flute type punching machines, ideal for copper tube processing in refrigeration and heat exchanger applications.
| Attribute | Value |
|---|---|
| Product Name | 3-Jaw Chuck Punching Bullet Punching Hole Tools |
| Material | SKD11 or DC53 |
| Process Tube Diameter | Φ4.76-Φ110 |
| Processing Method | Precision CNC Lathe Turning |
| Heat Treatment | HRC 60°-62° |
| Surface Finish | Ra 0.4 |
| Quality Control | 100% Inspection |
| Process Tube Dia. | Available Punching Hole Dia. |
|---|---|
| Φ9.53mm (3/8inch) | Φ5mm |
| Φ12.7mm (1/2inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ15.88mm (5/8inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ19.05mm (3/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm |
| Φ22.22mm (7/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
Designed for use with:
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing for air conditioning, heat exchanger production, and various high-tech industries including new energy, medical devices, aerospace, and automotive sectors.
