OEM CNC Punching Machine Parts Steel 3 Jaw Chuck For Tube Cutting Bending End Forming

Brand Name:	3-Jaw Chuck
Model Number:	3-Jaw Chuck 01
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

CNC Punching Machine Parts

Material:

SKD11 Or DC53

Process Tube Dia.:

Φ4.76-Φ110

Processing:

Precision CNC Lathe Turning

Heat Treatment ::

HRC 60°-62°

Punching Hole Dia.:

Φ5,Φ6.0,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88,Φ19.05,Φ22.22

Quality:

100% Inspection

Surface Finish:

Ra 0.4

Service:

OEM Or ODM

Application:

CNC 3D Tube Bender CNC Hole Punching Machine,CNC Tube Perforating Machine,CNC Flute Type Punching Machine,CNC Tube Integrated Machine(All In One),Integrated Tube Cutting Bending And Punching Machine,Integrated Punching Tube Bending And End Forming Machine

Usage:

Clamping Copper Aluminum And Stainless Steel Tube

Packaging Details:

Plastic box and carton box packaging

Highlight:

OEM CNC Punching Machine Parts

Steel 3 Jaw Chuck

3 Jaw Chuck OEM

Product Description

Precision 3-Jaw Chuck for CNC Tube Processing

OEM CNC punching machine parts designed for tube cutting, bending, and end forming operations. Manufactured from high-quality steel for durability in demanding industrial applications.

Product Specifications

Attribute	Value
Product Name	3-Jaw Chuck Punching Tool
Material	SKD11 or DC53
Process Tube Diameter	Φ4.76-Φ110
Processing	Precision CNC Lathe Turning
Heat Treatment	HRC 60°-62°
Punching Hole Diameter	Φ5 to Φ22.22 (multiple sizes available)
Quality	100% Inspection
Surface Finish	Ra 0.4
Service	OEM or ODM

Key Features

Precision-engineered for copper tube CNC bending and punching machines
Manufactured from high-quality DC53 mold steel
Withstands demands of mass production in pipe manufacturing
Fully compatible with CNC tube machines from various brands
Customizable to specific production requirements

Technical Specifications

Process Tube Diameter	Punching Hole Diameter Options
Φ9.53mm (3/8inch)	Φ5mm
Φ12.7mm (1/2inch)	Φ5mm, Φ6.35mm, Φ7mm
Φ15.88mm (5/8inch)	Φ5mm, Φ6.35mm, Φ7mm
Φ19.05mm (3/4inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm
Φ22.22mm (7/8inch)	Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm
Custom Sizes	Available upon request

Applications

This 3-jaw chuck is designed for use with:

CNC 3D tube benders
CNC hole punching machines
CNC tube perforating machines
Integrated tube cutting, bending and punching machines
Air conditioning pipe manufacturing equipment

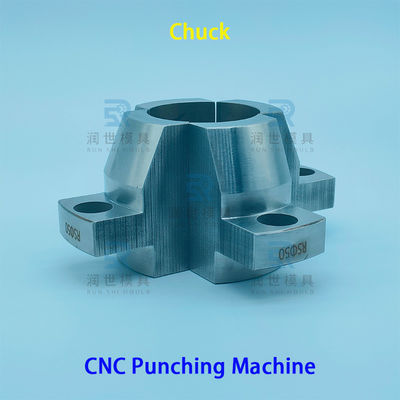

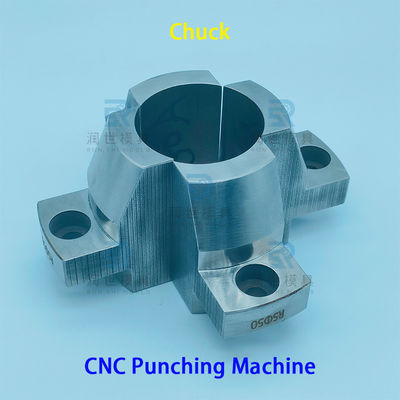

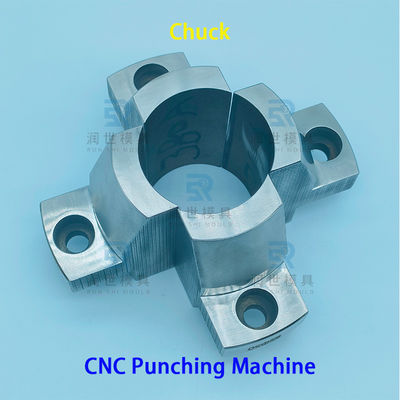

Product Images

Industry Applications

Essential equipment for integrated tube processing in air-conditioning, refrigeration, and heat exchanger manufacturing industries.

Manufacturing Capabilities

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for various industries including:

Air conditioning and heat exchanger manufacturing
New energy and fluid control
Medical devices and semiconductor
Aerospace and photovoltaics
Lithium batteries and petrochemicals
High-precision automation equipment

Frequently Asked Questions

What is the name of this product?

3-jaw chuck punching Bullet head Punching Hole Tools.

Are you a trading company or manufacturer?

We are the manufacturer.

What industry is the 3-jaw chuck mainly used for?

Primarily used in air-conditioning refrigeration heat exchanger industry for integrated tube processing machines.

How do you manufacture after order confirmation?

We require samples or drawings. Our production engineers with over 10 years of experience ensure precise tolerance control.

What is your delivery time?

10-15 working days for in-stock items, 20-25 working days for custom orders (quantity dependent).

What are your payment terms?

Payment ≤ $10,000 USD: 100% in advance. Payment > $10,000 USD: 50% T/T in advance, balance before shipment.
