Shrink Tube Die Wear Resistant Tube Forming Die For CNC Tube Shrinking and Forming Machine

Brand Name:	Shrink Tube Die
Model Number:	Shrink Tube Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Shrink Tube Die

Material:

YG8

Specification:

Φ3,Φ4,Φ4,76,Φ5,Φ6,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88

Processing:

Precision Grinder Fine Grinding

Hardness:

HRA 89°-92°

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or Coating

Service:

OEM Or ODM

Application:

CNC Tube End Forming Machine,End Forming Machine With Spinning Mode,End Forming Machine With Flinging Mode,CNC Tube Integrated Machine(All In One),CNC Tube Integrated End Forming Machine

Usage:

Expanding,Shrinking Or Pier Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Highlight:

Shrink Tube Die

Tube Die Wear Resistant

Wear Resistant Tube Forming Die

Product Description

Shrink Tube Die - Wear Resistant Tube Forming Die for CNC Machines

High-performance tungsten steel shrink tube dies designed for precision tube forming operations on CNC machines. These durable dies provide exceptional wear resistance for expanding, shrinking, and piercing copper, aluminum, and steel tubes.

Key Features

Material: Premium YG8 tungsten steel construction
Hardness: HRA 89°-92° for superior wear resistance
Precision: Fine ground with Ra 0.2 surface finish
Versatility: Suitable for expanding, shrinking, and piercing operations
Quality: 100% inspected for consistent performance
Customization: Available in OEM/ODM specifications

Technical Specifications

Attribute	Value
Product Name	Tube Expansion and Reduction Tools (Various Names)
Material	YG8
Processing	Precision grinder fine grinding
Hardness	HRA 89°-92°
Surface Finish	Ra 0.2 (Mirror polishing or Coating available)
Quality Control	100% Inspection

Available Sizes

Φ3, Φ4, Φ4.76, Φ5, Φ6, Φ6.35, Φ7, Φ7.94, Φ8.9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88

Applications

Compatible with various CNC tube forming machines including:

CNC Tube End Forming Machines
End forming machines with spinning mode
End forming machines with flinging mode
CNC Tube Integrated Machines (All In One)

Industry Applications

Widely used in HVAC, automotive, aerospace, water heater manufacturing, and other metalworking industries.

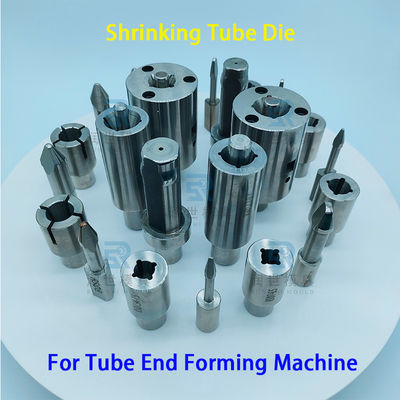

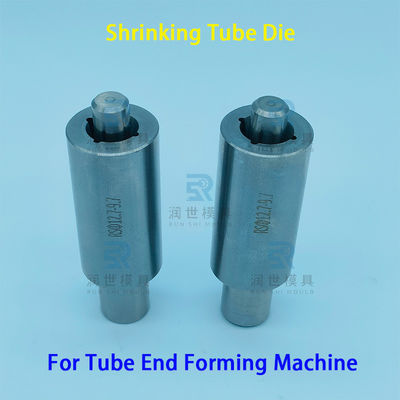

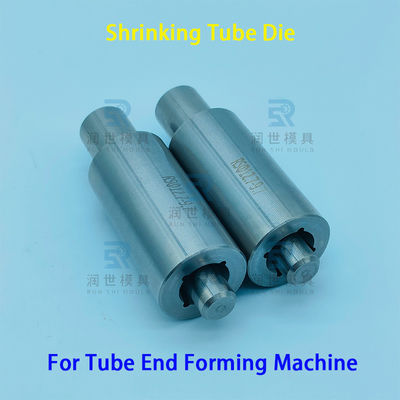

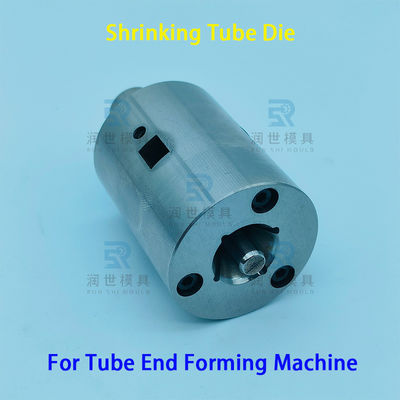

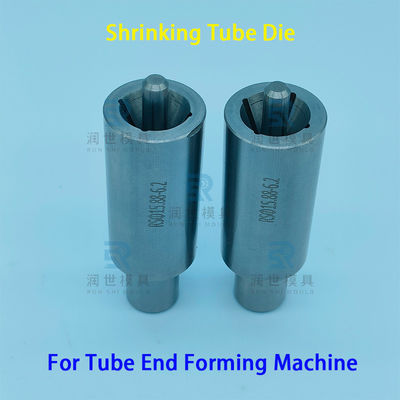

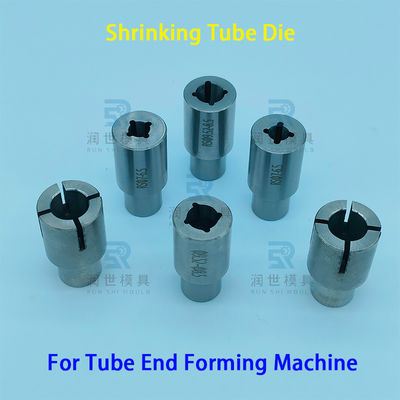

Product Images

Manufacturer Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing high-quality equipment molds and components for various industries including HVAC, new energy, medical devices, aerospace, and automotive sectors.

Frequently Asked Questions

Q: Are you a manufacturer or trading company?

A: We are the manufacturer with our own production facility.

Q: What industries use these shrink tube dies?

A: Primarily used in HVAC, automotive, aerospace, and water heater manufacturing for tube end forming operations.

Q: What is your typical delivery time?

A: 5-10 working days for in-stock items, 15-20 working days for custom orders (depending on quantity).

Q: What are your payment terms?

A: For orders ≤$10,000: 100% in advance. For orders >$10,000: 50% deposit, balance before shipment.

For additional questions or custom requirements, please contact our sales team.
