Tungsten Steel Tube Expansion Dies YG8 Tube Swaging Dies For Precision Shaping

Brand Name:	Expansion and Swaging Die
Model Number:	Expansion and Swaging Die 001
MOQ:	10 PCS
Price:	Negotiate Price
Payment Terms:	T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TS16949

Product Name:

Tube Expansion Dies

Material:

YG8

Specification:

Φ3,Φ4,Φ4,76,Φ5,Φ6,Φ6.35,Φ7,Φ7.94,Φ9.53,Φ8.9,Φ12,Φ12.7,Φ14.5,Φ15.88

Processing:

Precision Grinder Fine Grinding

Hardness:

HRA 89°-92°

Quality:

100% Inspection

Surface Finish:

Ra 0.2

Surface Treatment:

Mirror Polishing Or Coating

Service:

OEM Or ODM

Application:

CNC Tube End Forming Machine,End Forming Machine With Spinning Mode,End Forming Machine With Flinging Mode,CNC Tube Integrated Machine(All In One),CNC Tube Integrated End Forming Machine

Usage:

Expanding,Shrinking Or Pier Copper,Aluminum And Steel Tube

Packaging Details:

Plastic box and carton box packaging

Highlight:

Tungsten Steel Tube Expansion Dies

YG8 Tube Swaging Dies

Precision Tube Swaging Dies

Product Description

Tungsten Steel Tube Expansion Dies YG8 Tube Swaging Dies For Precision Shaping

Our high-grade tungsten steel tube end forming dies are engineered for precision expansion, shrinking, and piercing of copper, aluminum, stainless steel, and iron tubes. These dies offer superior hardness and wear resistance for exceptional longevity in demanding industrial applications.

Key Specifications

Attribute	Value
Product Name	Expansion and Swaging Die Flaring Tool
Material	YG8
Specification	Φ3, Φ4, Φ4.76, Φ5, Φ6, Φ6.35, Φ7, Φ7.94, Φ8.9, Φ9.53, Φ12, Φ12.7, Φ14.5, Φ15.88
Processing	Precision grinder fine grinding
Hardness	HRA 89°-92°
Quality	100% Inspection
Surface Finish	Ra 0.2
Surface Treatment	Mirror polishing or Coating
Service	OEM or ODM

Product Features

Made from premium tungsten steel (YG8) for maximum durability
Precision ground for exact dimensional accuracy
Exceptional hardness (HRA 89°-92°) for long service life
Superior surface finish (Ra 0.2) for smooth operation
Available with mirror polish or specialized coating
100% quality inspected before shipment
Custom specifications available upon request

Applications

CNC Tube End Forming Machine

End forming machine with spinning mode

End forming machine with flinging mode

CNC Tube Integrated Machine (All In One)

CNC Tube Integrated end forming Machine

Tube pier head machine

Industry Applications

These precision dies are widely used in air conditioning, automotive, aerospace, water heater, and heat exchanger manufacturing industries.

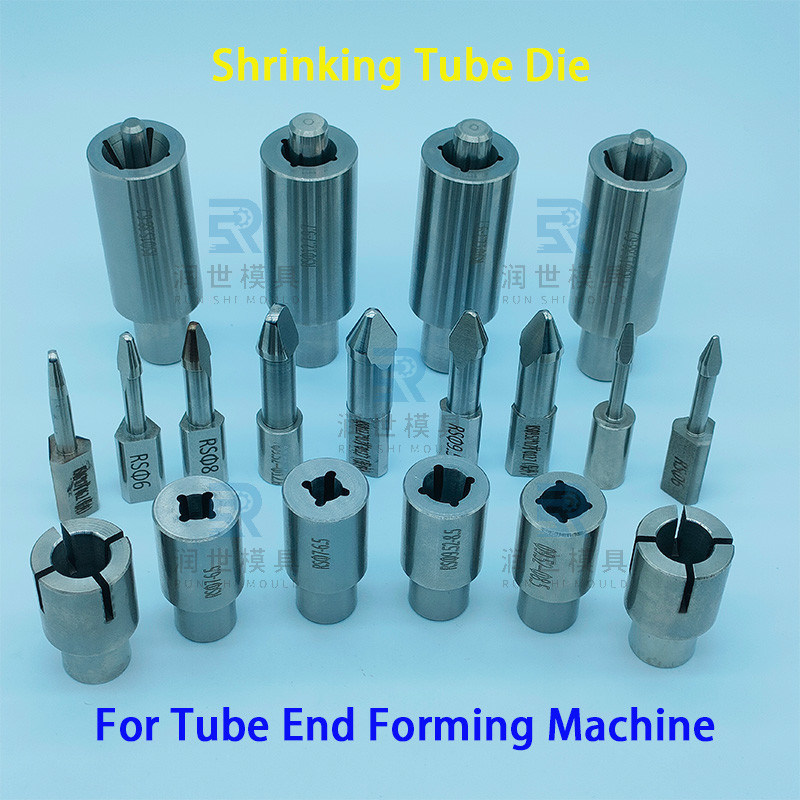

Product Gallery

Manufacturing Information

Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing equipment molds, vulnerable parts, and cutting tools for various industries including air conditioning, heat exchanger manufacturing, new energy, fluid control, medical devices, semiconductor, aerospace, photovoltaics, lithium batteries, petrochemicals, high-precision automation equipment, electronic communication, and automotive applications.

Frequently Asked Questions

Q: What is the name of this product?

A: Expansion and swaging die, also known as Expansion Tool, Flaring tool, Expanding Tool, Flare Tool, Expansion Die, Flaring Die, shrinking Tool, Shrinking Die, Shrinkage Tool, Pier Tube Die, Pier Tube Tool, or Tube End Forming Die.

Q: Are you a trading company or manufacturer?

A: We are the manufacturer with our own production facilities.

Q: What industry is the expansion and swaging die mainly used for?

A: These are essential components for CNC Tube End Forming Machines, including spinning mode and flinging mode machines, as well as integrated tube forming systems.

Q: How do you manufacture after the order is confirmed?

A: We require samples or drawings to begin production. Our experienced engineers (10+ years in the field) precisely control tolerances and specifications.

Q: How long is your delivery time?

A: Standard delivery is 5-10 working days for in-stock items, or 15-20 working days for custom orders, depending on quantity.

Q: What are your payment terms?

A: For orders ≤$10,000 USD: 100% advance payment. For orders >$10,000 USD: 50% T/T deposit, balance before shipment.

For additional questions, please contact our technical support team for expert assistance.
