| Brand Name: | Punching Hole Tools |
| Model Number: | Punching Hole Tools 001 |
| MOQ: | 10 PCS |
| Price: | Negotiate Price |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 10000 pieces per month |
| Attribute | Value |
|---|---|

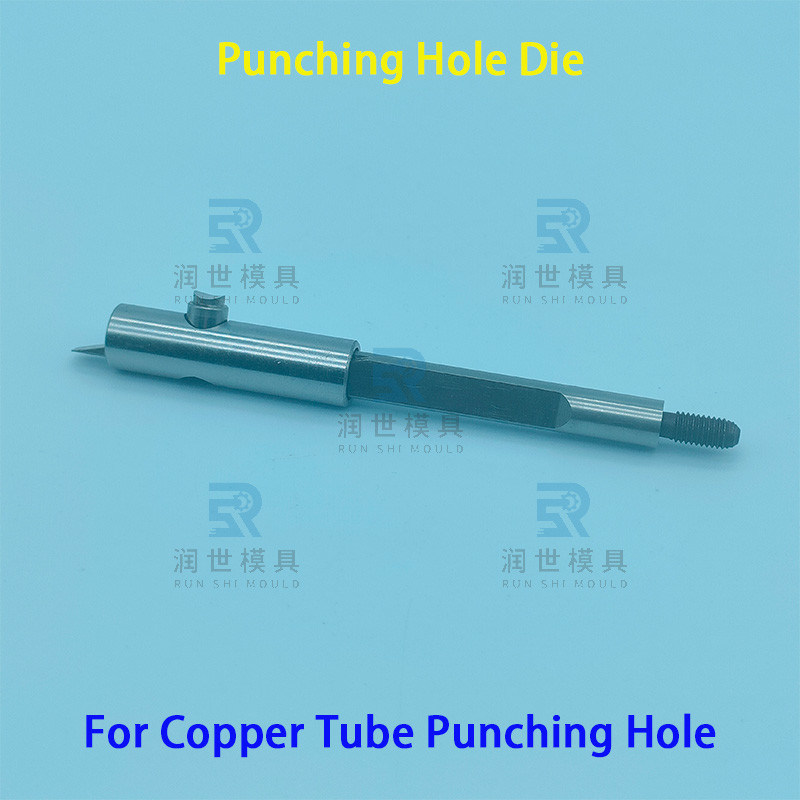

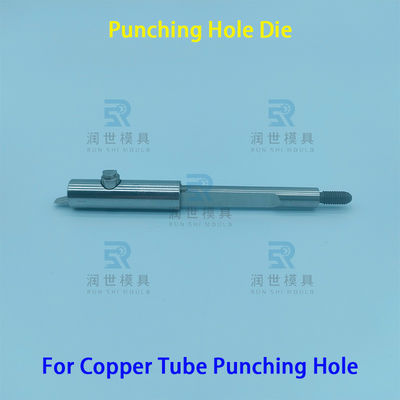

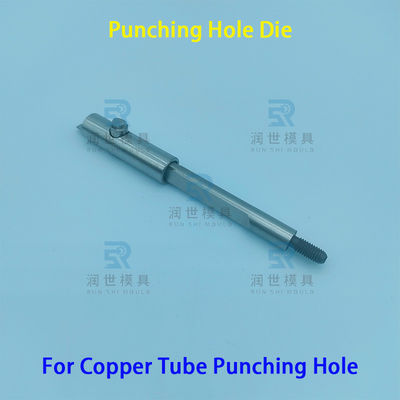

| Product Name | Punching Hole Tools, Punch Hole Tooling, Punch Hole Tool Bullet, Punch Hole Head, Punch Hole Bullets |
| Material | SKD11, DC53 or HSS SKH51 |
| Process Tube Diameter | Φ9.52-Φ110 |
| Processing | Precision CNC Lathe Turning |
| Heat Treatment | HRC 60°-62° |
| Punching Hole Diameter | Φ5, Φ6.0, Φ6.35, Φ7, Φ7.94, Φ9.53, Φ8.9, Φ12, Φ12.7, Φ14.5, Φ15.88, Φ19.05, Φ22.22 |
| Quality | 100% Inspection |
| Surface Finish | Ra 0.4 |
| Service | OEM or ODM |
| Process Tube Diameter | Available Punching Hole Diameters |
|---|---|
| Φ9.53mm (3/8inch) | Φ5mm |
| Φ12.7mm (1/2inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ15.88mm (5/8inch) | Φ5mm, Φ6.35mm, Φ7mm |
| Φ19.05mm (3/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm |
| Φ22.22mm (7/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ25.4mm (1inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ28.58mm (1-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ31.75mm (1-1/4inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm |
| Φ34.94mm (1-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ41.28mm (1-5/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ53.98mm (2-1/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm |
| Φ60.32mm (2-3/8inch) | Φ5mm, Φ6.35mm, Φ7mm, Φ9.52mm, Φ12.7mm, Φ15.88mm, Φ19.05mm, Φ22.22mm |
| Other Specifications | Custom sizes available |
